Barr (Linotype & Machinery, UK)

image link-topic-sf0.jpg

[TO DO: Next plate in L&G; GB and US patents to Barr for this machine and also component gimbals/bearings.]

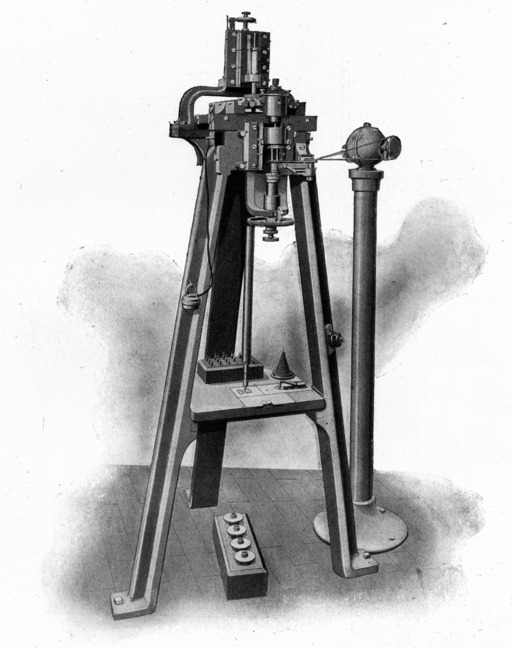

Arranged for cutting (wrong-reading) punches from right-reading raised working patterns. Derived from the Benton machine. See Legros & Grant Typographical Printing Surfaces. (1916): p. 204, Fig. 159 on Plate V facing p. 204, and Fig. 160 on Plate VI facing Plate V. See GB patent No. 22,106 of 1900 (GB 190022106 A).

[click image to view larger]

image link-to-legros-grant-1916-plate-005-1200grey-fig-155-machine-cut-punch-fig-159-barr-linotype-punchcutter-crop-pantograph-sf0.jpg

(The image above links to a 2048 pixel wide cropped version of just the pantograph's image. Here is the 1200dpi original scan of the page (7400x11698 pixels, 35 Megabytes): )
